DarkSide-UK Cold test stand integration call

Monday 5 Dec 2022, 10:00 → 11:10 Europe/London

ZOOM

Zoom connection:
https://liverpool-ac-uk.zoom.us/j/9781172076

Trello:
https://trello.com/invite/b/7GoqPn1A/98d6eb20cb5c0a5015fdd360a9c57406/darkside20k-vpdm-cold-stand

Outstanding/key items:

• LTC6820 demo board availability is poor for steering module control boxes. Liverpool has 4 on order but delivery has slipped to DEC 16.
• Tile/vPDU testing status? Current estimate is that vPDUs will be made available for the cold test stands in January.
• vPDU vacuum bagging

Zoom connection:
https://liverpool-ac-uk.zoom.us/j/9781172076

Trello:
https://trello.com/invite/b/7GoqPn1A/98d6eb20cb5c0a5015fdd360a9c57406/darkside20k-vpdm-cold-stand

Outstanding/key items:

• LTC6820 demo board availability is poor for steering module control boxes. Liverpool has 4 on order but delivery has slipped to DEC 16.
• Tile/vPDU testing status? Current estimate is that vPDUs will be made available for the cold test stands in January.
• vPDU vacuum bagging

10:10 → 11:10 Astrocent test stand updates

Schedule:

https://docs.google.com/spreadsheets/d/1VkFDMUSEm2nXOUux-wnFonVq2NV_Z2mnwiRTxISHs3c/edit#gid=653252054

Astrocent will use CAEN VX2740 boards.

10:10 → 11:10 Edinburgh test stand updates

MIDAS is working. Will look at setup steps for other test stands.

10:10 → 11:10 Lancaster test stand updates

10:10 → 11:10 Light source updates

Working on stiff design for connecting fiber to laser coupler.

Task for Liverpool: Share diffuser positions and check with simulations if coverage is acceptable.

Considering working towards a light source available late December if possible - TBD.

Light_source-28November.pdf

Light_source2.pdf

Light_source.pdf

10:10 → 11:10 Liverpool test stand updates

Liverpool construction schedule:

https://docs.google.com/spreadsheets/d/1xaXyx5qR3-0kjym95AVhqFfvZychM2DMPLjtj5JwlV4/edit?usp=sharing

10:10 → 11:10 RHUL test stand updates

10:10 → 11:10 Signal cable and feedthrough plans

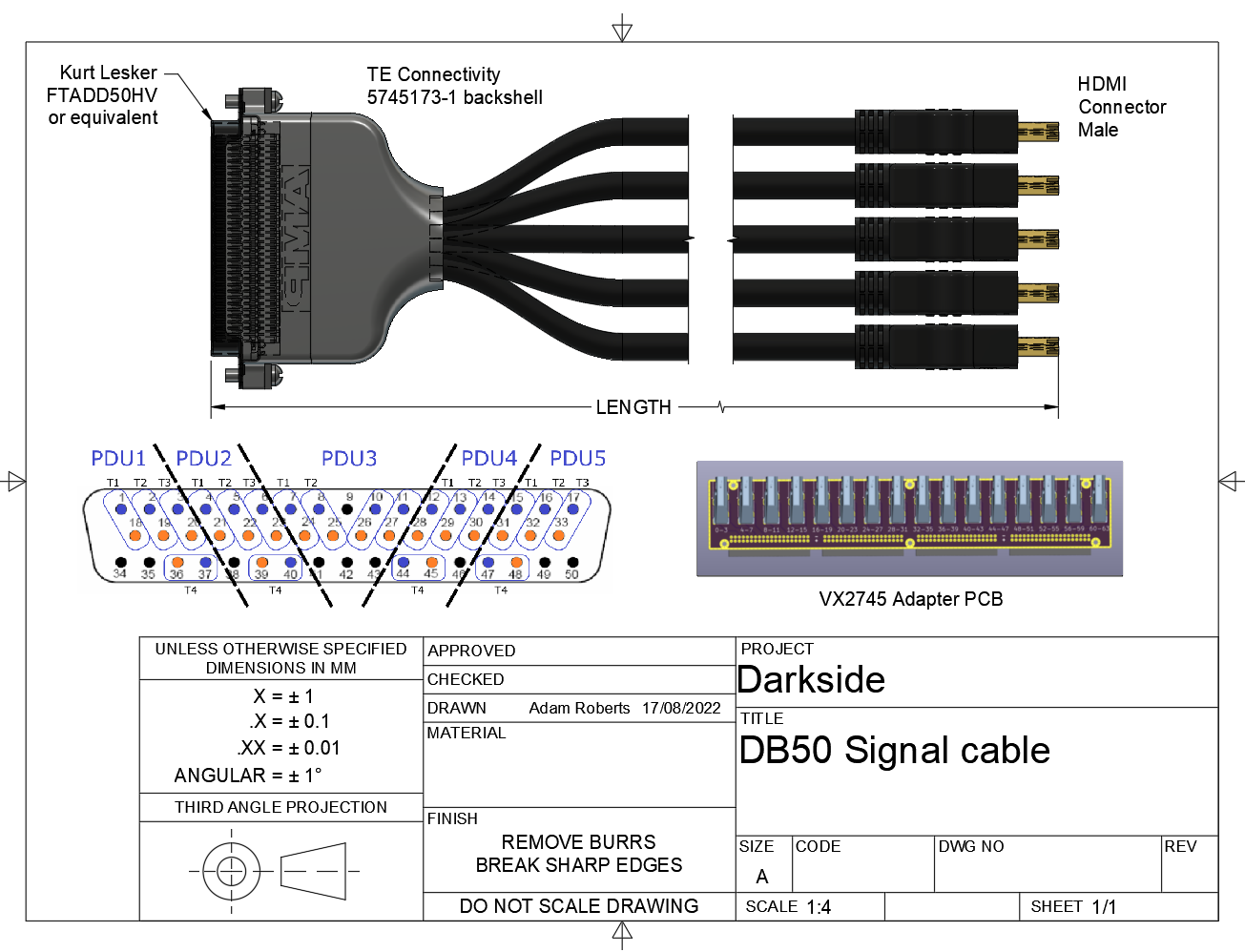

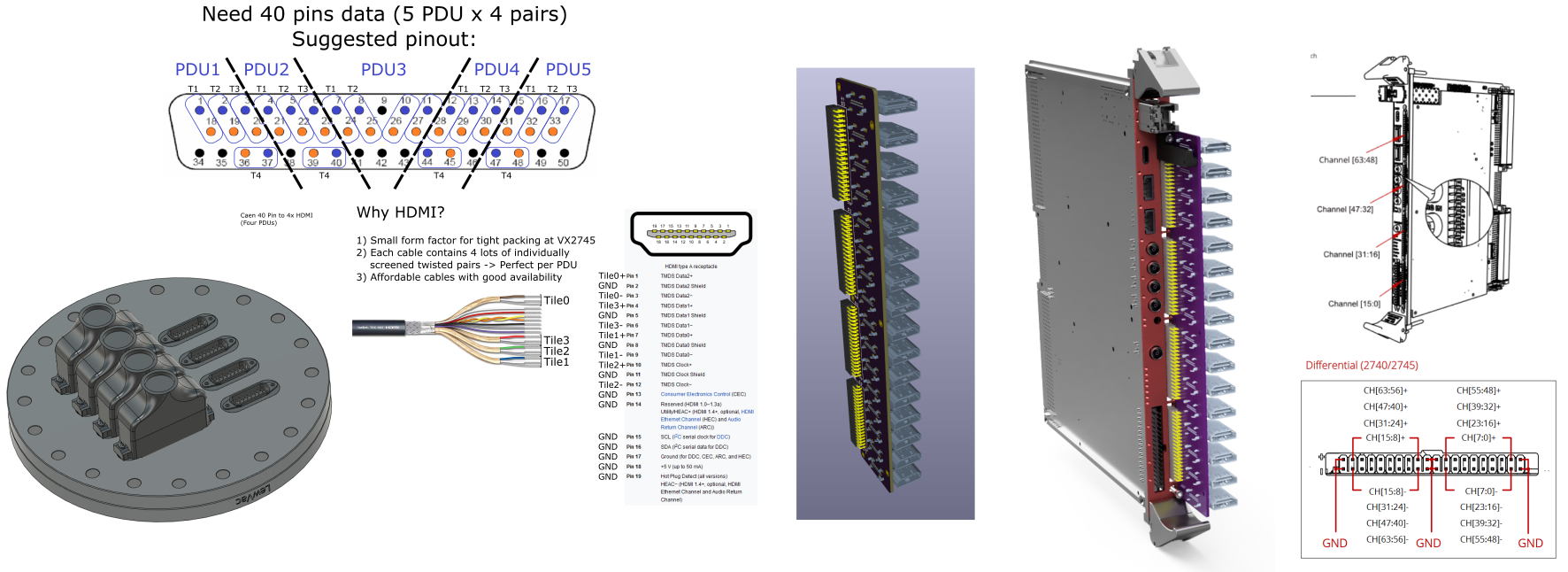

DB50 signal feedthroughs into CAEN VX2745 using custom HDMI adapter PCB for pin headers on front panel.

DB50 power feedthroughs into either CAEN or desktop Keithley/Keysight power supplies.

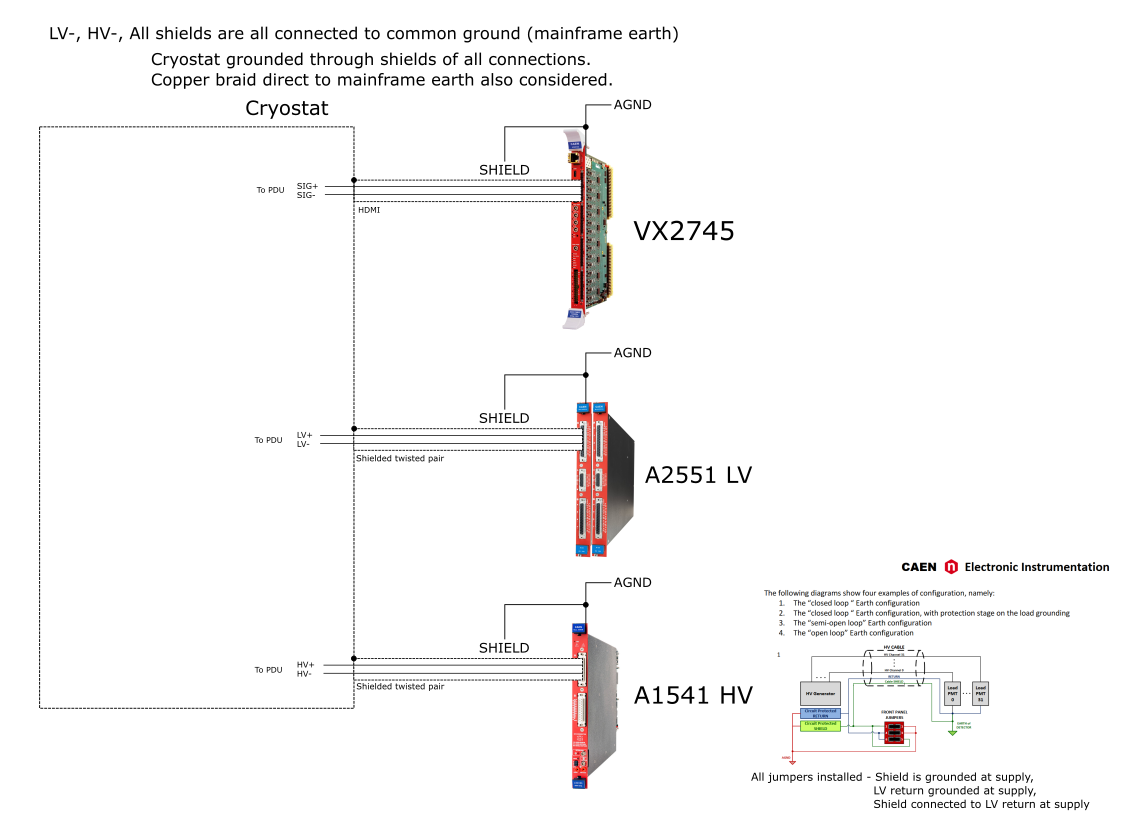

Grounding and cable shielding.
